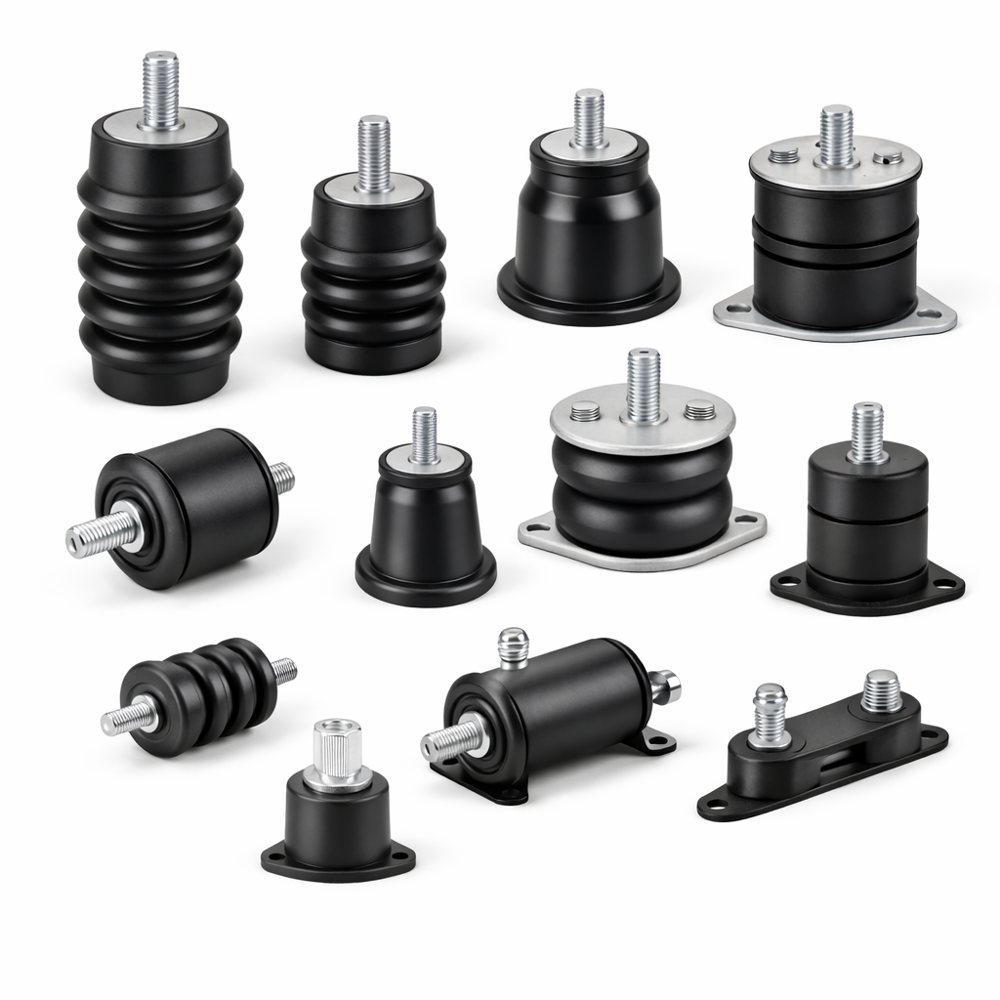

Rubber Dampers

Rubber Dampers Specification

Natural Rubber
Yes, also available in synthetic rubber

Weight
50 g to 1.2 kg (depending on size)

Temperature Resistance
-40C to +120C

Tolerance
0.5 mm

Diameter
20 mm to 100 mm (varies by type)

Volatile Matter (%)
< 3%

Resistance level
High resistance to aging, water, oil, and ozone

Compression Ratio
up to 20%

Color
Black / Custom Colors available

Usage & Applications
Vibration isolation, shock absorption for machinery, HVAC systems, industrial equipment, automotive parts

Part Type
Damping Component

Tensile Strength
12-18 MPa

Length
20 mm to 80 mm

Material
Natural rubber, Neoprene, Nitrile, EPDM

Feature
High durability, noise reduction, weather resistance, anti-vibration

Size
Standard and customized sizes available

Hardness
40-80 Shore A

Thickness
10 mm to 50 mm

Density
1.25 Gram per cubic centimeter(g/cm3)

Water Absorption
Negligible (<0.5%)

Style
Cylindrical, Sandwich, Rectangular, Cone Type

Components
Rubber body with metal inserts (as required)

Thermal Conductivity
Low (approx. 0.15 W/mK)

Nitrogen Content (%)
~1%

Flame Resistance Level
Standard (customizable to fire-retardant grades)

Product Type
Rubber Damper

Surface Finish
Smooth, Matte

Rubber Type
Natural/Synthetic Rubber

Width
15 mm to 80 mm (customizable)

Ash %
< 5%

Mounting Type
Threaded stud, Insert, or Plate Mount

Storage Temperature
0C to 30C (recommended)

Load Capacity
5 kg to 150 kg per damper (customizable)

Lead Time
2-4 weeks for standard options

Service Life
Over 1 million cycles

Customization
OEM/ODM available

Corrosion Resistance
Anti-corrosive coated metal parts

Operating Frequency Range
10 Hz-1000 Hz

About Rubber Dampers

SARA INDUS PRODUCTS PRIVATE LIMITED is a manufacturer and supplier of rubber dampers based in Chennai India. These dampers are designed for applications where vibration isolation, shock absorption and noise reduction are essential.

Our rubber dampers are manufactured using high quality rubber compounds to ensure excellent flexibility, impact resistance and long service life. These molded components help absorb vibration, reduce noise and protect machinery from operational stress.

Rubber dampers are widely used in industrial machinery, automotive systems, generators, compressors, pumps and engineering equipment.

We offer rubber dampers in different sizes, shapes, hardness levels and rubber grades based on customer requirements.

Product Features

Excellent vibration isolation
High shock absorption
Noise reduction performance
Good flexibility and durability
Oil and chemical resistance
Long operational life
Custom shapes and hardness available

Applications

Industrial machinery
Automotive systems
Generators and compressors
Pumps and motors
Engineering equipment

Additional Details

Custom molding solutions available
Precision molded components
Consistent product quality
Competitive pricing
Timely delivery
Suitable for industrial and OEM use

For bulk orders and custom requirements, contact SARA INDUS PRODUCTS PRIVATE LIMITED Chennai India.

Versatile Mounting and Customization Options

Choose from threaded stud, insert, or plate mounting types to match your application. Standard and custom sizes (15-80 mm width, 20-100 mm diameter) and styles ensure optimal performance for machinery, equipment, or vehicles. OEM/ODM services are available to tailor features for unique project demands, including fire-retardant grades, specialized colors, and precise load capacities.

Built for Durability and Harsh Environments

Our rubber dampers are crafted from high-quality natural or synthetic rubber compounds with anti-corrosive coated metal parts for enhanced longevity. They resist aging, water, oil, and ozone, operating reliably from -40C to 120C. Users benefit from a service life surpassing 1 million cycles, making these dampers ideal for demanding locales and extended use.

FAQ's of Rubber Dampers:

Q: How do rubber dampers help in reducing vibration and noise in machinery?

A: Rubber dampers absorb and isolate vibrational energy, significantly lowering transmission of vibration and noise to the surrounding structures. Their flexibility and resilience allow them to mitigate shocks and impulsive forces, thereby enhancing operational stability and reducing noise levels in machinery, HVAC systems, and automotive components.

Q: What mounting options are available for these rubber dampers, and how do I select the right one?

A: We offer threaded stud, insert, and plate mount options. Selection depends on your equipment design and installation preferences. Threaded studs are suited for easy bolt-on attachment, inserts work well in cavities, and plate mounts provide a flat surface interface. Our technical team can help you choose the ideal type based on your application requirements.

Q: Where are these rubber dampers typically used?

A: These dampers see broad use in vibration isolation and shock absorption for machinery bases, HVAC units, industrial machines, and automotive components. Their customizable properties make them suitable for various equipment across sectors such as manufacturing, energy, building services, and transportation.

Q: What is the typical lead time for standard and customized rubber dampers?

A: For standard damper options, the lead time is usually 2 to 4 weeks. Custom-designed dampers may have a slightly longer lead time depending on the complexity of your requirements. Please contact us for project-specific estimates.

Q: How do the material and coating ensure corrosion and weather resistance?

A: The metal components are coated with anti-corrosive materials, and the rubber body is formulated for high resistance to aging, water, oil, ozone, and varying weather conditions. This protects the damper from rust and degradation, even in harsh industrial or outdoor environments, ensuring a long service life.

Q: Can these dampers be supplied in customized sizes, colors, and hardness?

A: Yes, we offer a range of standard and fully customized options, including alterations in size (width, diameter, thickness), color, hardness (40-80 Shore A), and rubber material (natural or synthetic) to perfectly align with your technical and aesthetic requirements.

Q: What is the process for ordering OEM or ODM rubber dampers in India?

A: To order OEM or ODM dampers, share your detailed specifications-dimensions, load capacity, mounting type, color, and material preference. Our team will guide you through sampling, prototyping, and final production. We work with dealers, distributors, importers, manufacturers, retailers, traders, and service providers throughout India.
